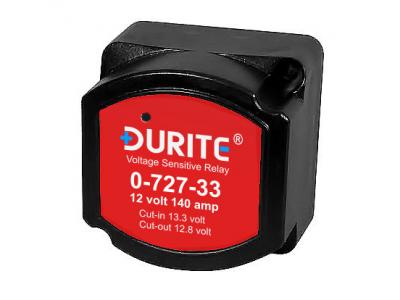

12V VOLTAGE SENSITIVE RELAY

Description

Voltage sensitive relay which allows split charging of second battery bank without discharging the primary/start battery.

12V, 140A

Relay makes at 13.3V and breaks at 12.65V

Features

• A 5 second delay operates when the voltage falls below the cut-out voltage to prevent nuisance cut-out due to high intermittant loads on the battery.

• Supplied with self tapping screws and ring crimp terminal for ground lead.

• Red LED indicator

• CE approved

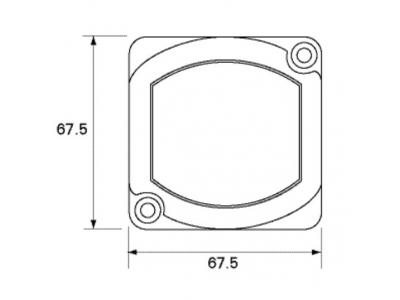

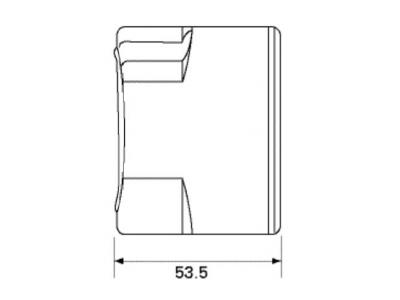

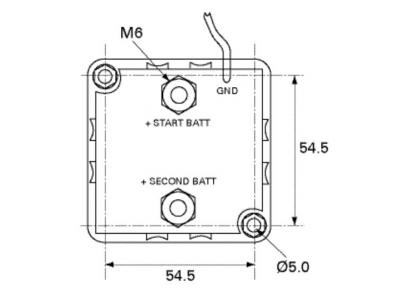

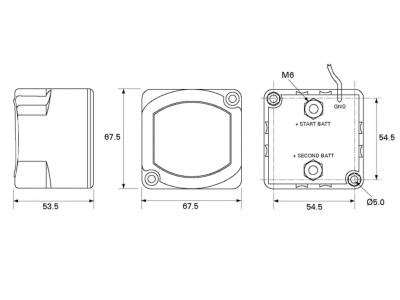

Dimensions

L 68mm x W 54mm x H 68mm

Alternatives / Accessories

24V version available. Please see the table to the left.
